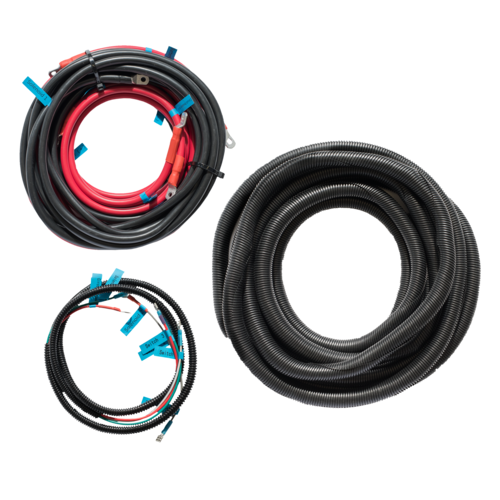

Standard Wiring Loom for Viper Pro 1500W Drum Winch - Tinned Copper

Suits Viper 1500W winches  - most boats up to 9 Metres

Don't waste money and time making your own wiring.

These wiring looms are handmade and fully tested.

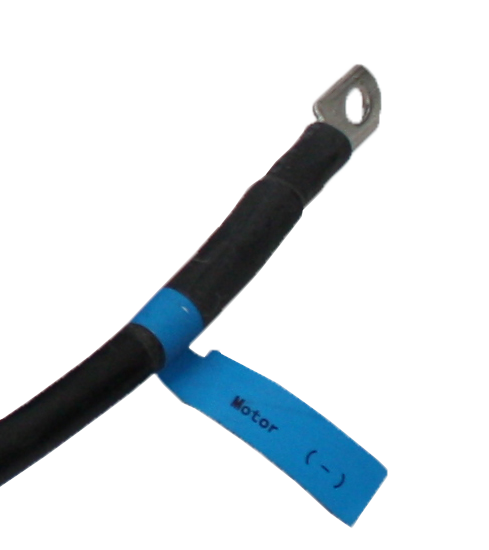

Marine Grade 3 B&S (25mm2) tinned copper wire, tinned copper lugs, silicone impregnated heat shrink and each connector is labelled for ease of installation.

Make your installation quick and  simple.
The 1500W loom wiring diagram is supplied on Boat Gear Australia's website as a PDF brochure which can be downloaded (see above).

For boats 8.5m and over we suggest you measure to check the wires below are long enough, - if not, email us, and for a small extra fee, we can lengthen the wires as requested.

Helpful Info for our Standard 1500W Loom:

  • Battery to Circuit Breaker - 5.8m (Positive)
  • Battery to Solenoid - 6.8m - (Negative)
  • Circuit Breaker to Winch Motor - 3.2m (Positive)
  • Solenoid to Winch Motor - 2 lengths x 3.2m each (2 Negatives)
  • Switch loom 1.5m

Make your installation quick and  simple.

We can also make custom Viper anchor drum winch wiring looms conatct Boat Gear Australia for more info.

(991455)

Practical Advice Tip:

The Viper 1500W winches have 3 wires so require this loom not the 6m or 8m looms.

For boats 8.5m and over we sugest you measure to check the wires in the description panel are long enough - if not email us, and for a small extra fee we can lengthen wires as requested.

Wiring diagram is supplied as a PDF brochure which can be downloaded.

SKU 991455
Model # 30060
Brand Viper
Shipping Weight 9.0000kg
Shipping Width 0.360m
Shipping Height 0.300m
Shipping Length 0.400m
Unit Of Measure Kit
