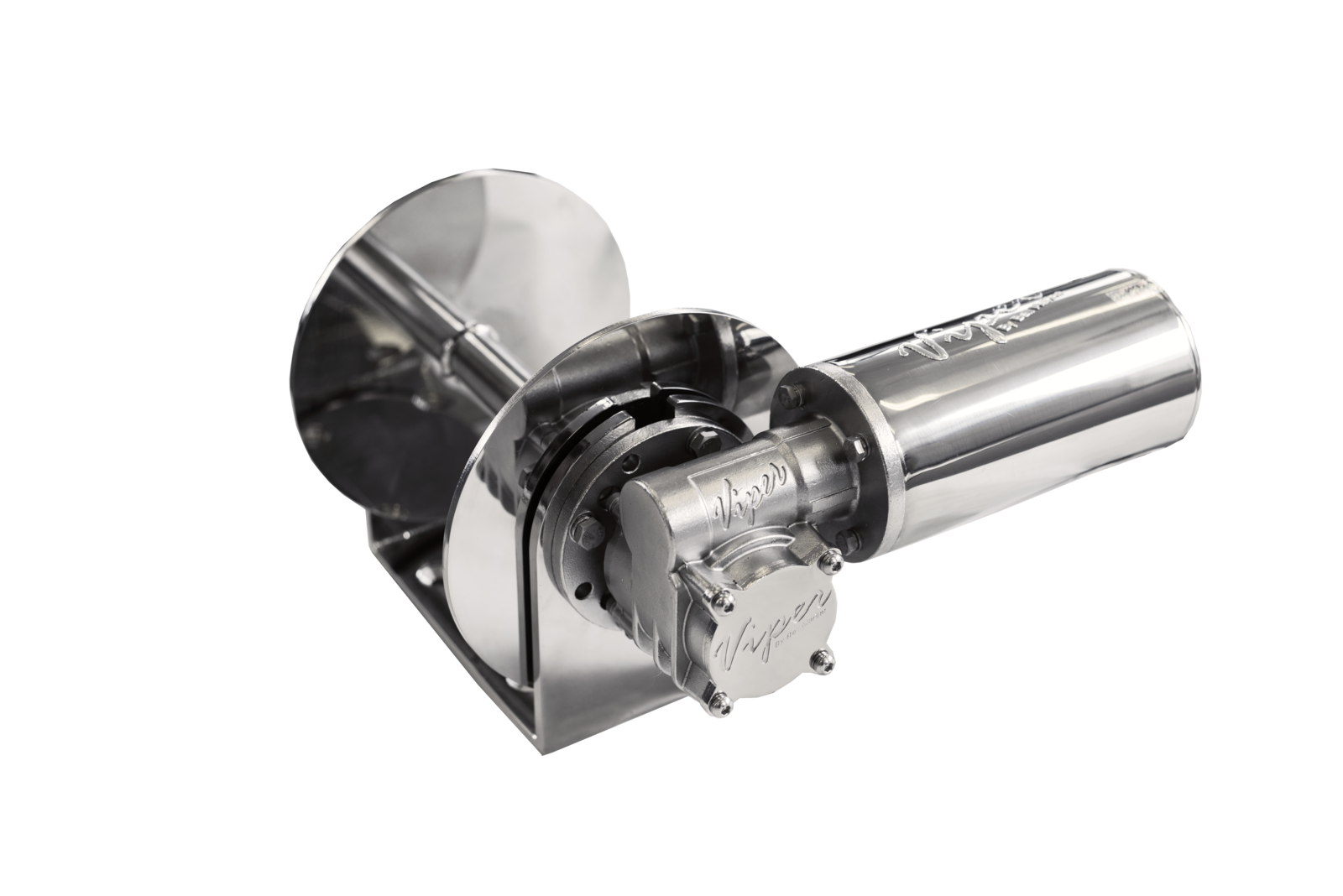

30038-6S - Viper S 1000W 12V Micro Stainless Steel Drum Anchor Winch Kit Bundle - 60m of 6mm D/Braid plus 6m of 6mm chain
Key Information:

Viper 6mm double braid anchor rope has a breaking strain of approx 960kg and gives your enough length for most of our bays and inland water ways.

  • Compact stainless steel winch body for small spaces - but still 1000W of power.
  • Suits most boats 4m to 6.0 metres.
  • Includes 60 Metres of 6mm Double Braid Rope and 6 metres of Gal Chain (Total of 66 Metres)
  • There are  loads of other goodies included in this kit! (see the What's in the Box tab)

This model is physically smaller than most drum winches so it may fit where other winches cannot.
 Note: The word Micro refers to its small overall physical size not its power - it has a very powerful 1000W motor fitted with a
316 Stainless Steel Marine Gearbox.

  • It has IP68 Waterproof Certification and now includes an Emergency Manual Release Safety Feature.
  • Bundled with 60mtrs of 6mm double braid rope and pre spliced to 6mtr of gal 6mm short link chain ready to use! (Total of 66m Rope/Chain).
  • 3B&S cables are already attached to the motor and leak tested to a IP68 Rating.
  • 1000 Watt Stainless Steel Submersible Electric Motor with IP68 Certifification
  • All New 316 Stainless Steel Marine Grade Worm Drive Gearbox
  • 28mm Solid S/S Shaft With 3 Support Bearings
  • 8mm Marine Grade 316 Plate S/S Hand Polished to a Mirror Finish
  • 360 Degree Motor Rotation 16 Different Positions
  • 1 Mtr of 3 B&S Tinned Copper Cable Fitted & Leak tested
  • Max fall rate: 45mtrs per minute
  • Max retrieval rate: 40mtrs per minute
  • Suits most boats 4m to 6.0 metres.
  • Weight: 15kgs

Great value for money - just have a look at all the goodies included in this kit - items such as the deck roller, circuit breaker and swivel are all included! (see the What's in the Box tab)

All you have to add is your own cabling or one of the pre assembled, tinned copper marine wiring looms and you will never have to break your back pulling up your anchor and chain again!

(991430)

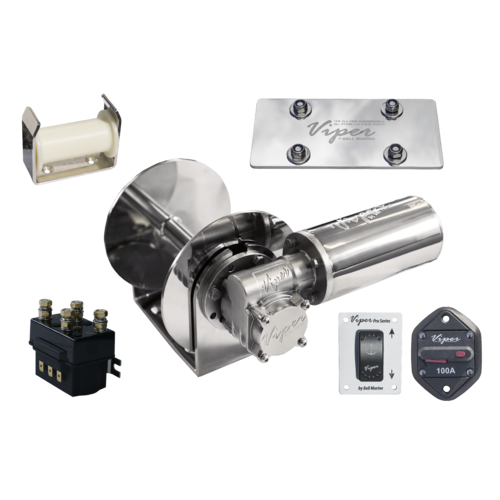

What's In the Box?

  • New Viper "S" Series 1000 MICRO All Stainless Steel Anchor Winch
  • 60mtrs of 6mm double braid premium rope spliced to 6 mtrs of 6mm galvanised short link anchor chain - 30045
  • Viper pro series anchor swivel small - 30001
  • Viper deluxe anchor roller small - 30009
  • 200amp reversing solenoid - 30020
  • LED illuminated marine rocker switch - 90021
  • Viper laser etched led illuminated switch cover - 90046
  • 100 amp flush mount circuit breaker with rubber seal - 30046
  • Single led switch stainless steel face plate - 30051
  • Combo led switch & circuit breaker s/s face plate - 30052
  • 5mm stainless steel sandwich plate -
  • All fixing hardware -
  • Installation notes & wiring diagram

Recommended Optional Extras (also shown in this category)

  • Premade Wiring loom - choice of two: up to 6mt boat or 8mt boat
  • Chain Sock
  • Fitment Kit (if fiting to an aluminium boat)









We can ship this product almost anywhere in Australia!

SKU 991430
Model # 30038-6S
Brand Viper
Shipping Weight 21.0000kg
Shipping Width 0.430m
Shipping Height 0.310m
Shipping Length 0.430m
Shipping Cubic 0.057319000m3
Unit Of Measure Kit

Viper 5 Year performance warranty.
