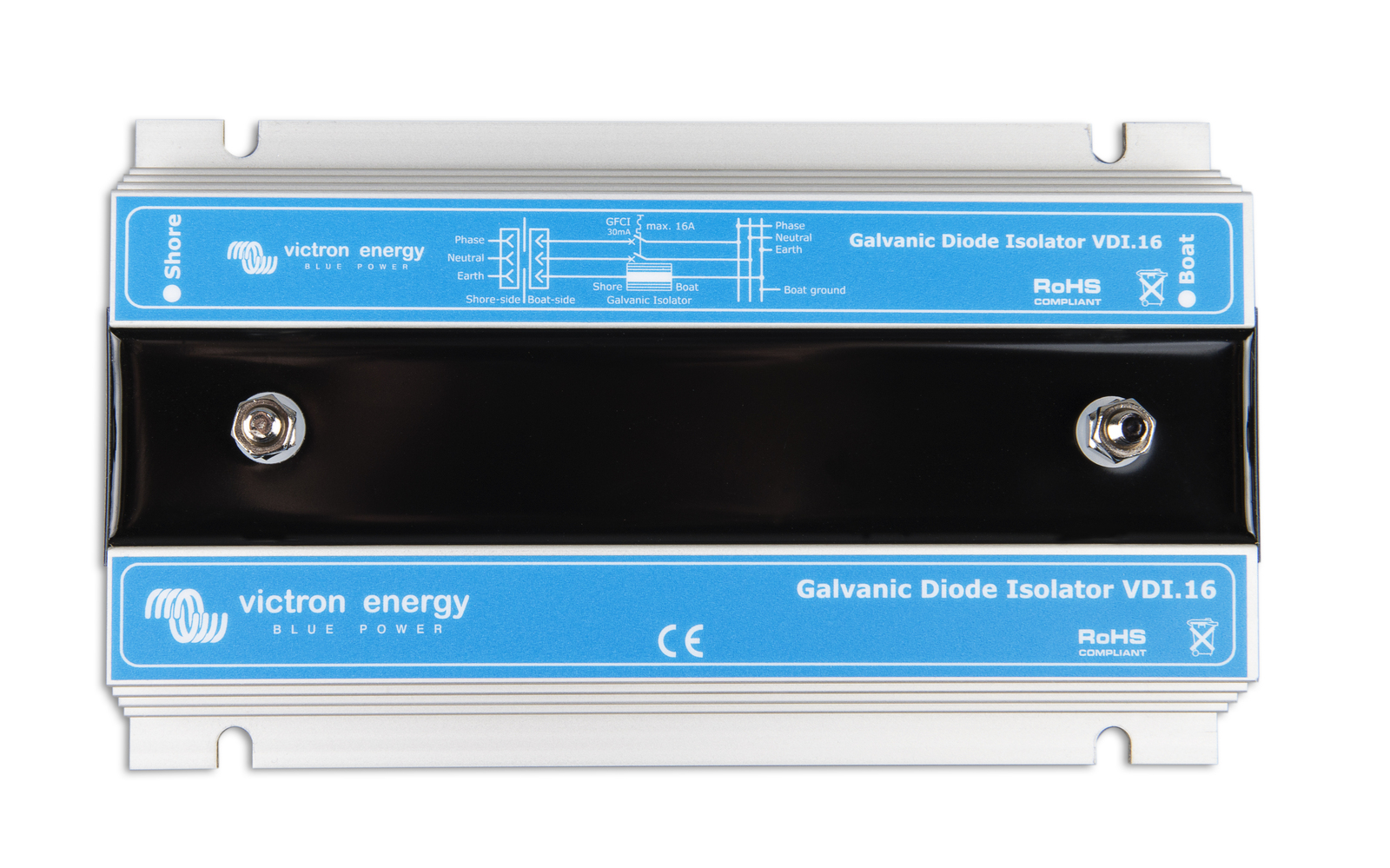

VICTRON Galvanic Isolator VDI-16 GDI000016000
Helps combat electrolytic current.

The galvanic isolator consists internally of two diodes which are connected in anti-parallel fashion.
When they are connected in this way, the diodes allow current in both directions but only above a certain threshold voltage. The voltage at which diodes conduct is about 1.4 Vdc.

The isolator is installed directly behind your boat's 230V connection. The forward voltage from the galvanic isolator is higher than the potential difference between metals.
As a result, this voltage will not allow conduction and as such, the galvanic isolator will prevent any electrolytic current.
However, if there is a (higher) error voltage in the AC circuit, the diodes will allow current through and the residual-current device will break the circuit.

(990274)

SKU 990274
Model # GDI000016000
Brand Victron
Artist / Author Ruth Cunningham
Shipping Weight 1.6000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.140m
Unit Of Measure Each

Victron 5 Year Warranty
