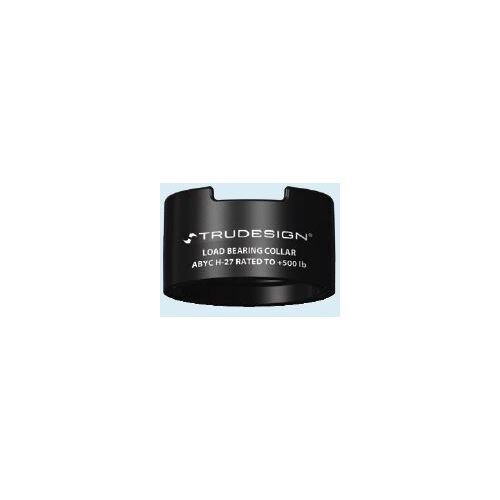

TruDesign Load Bearing Collar - Small - 138637 / 450030
Suits:  3/4" and 1" Trudesign ball valves and skin fittings

 ABYC H-27 Rated

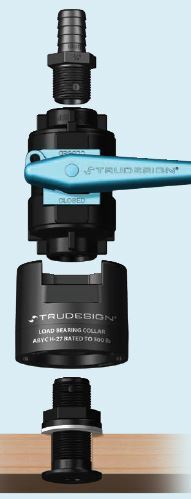

A Load Bearing Collar will allow an assembly of a Skin Fitting -/ Ball Valve /Tail to withstand a 500 lb (227 kg) load applied to the tail (inboard end), for
a minimum of 30 seconds – complying with North American ABYC H-27 standards.
Compliance to this standard is mandatory for all vessels sold into the United States.
These are available in three sizes.



(992151)

SKU 992151
Barcode # 9421007123287
Brand TruDesign
Shipping Weight 0.4000kg
Shipping Width 0.100m
Shipping Height 0.050m
Shipping Length 0.120m
Shipping Cubic 0.000600000m3
Unit Of Measure Each
