Single Direction Solenoid for 12V Capstan Winches Maxwell SP1393

Single Direction Solenoids should be used where only single direction motor rotation is necessary - for example capstan winches.

Note: This solenoid has kept the same part number (Maxwell SP1393) but has changed shape from round to rectangular.

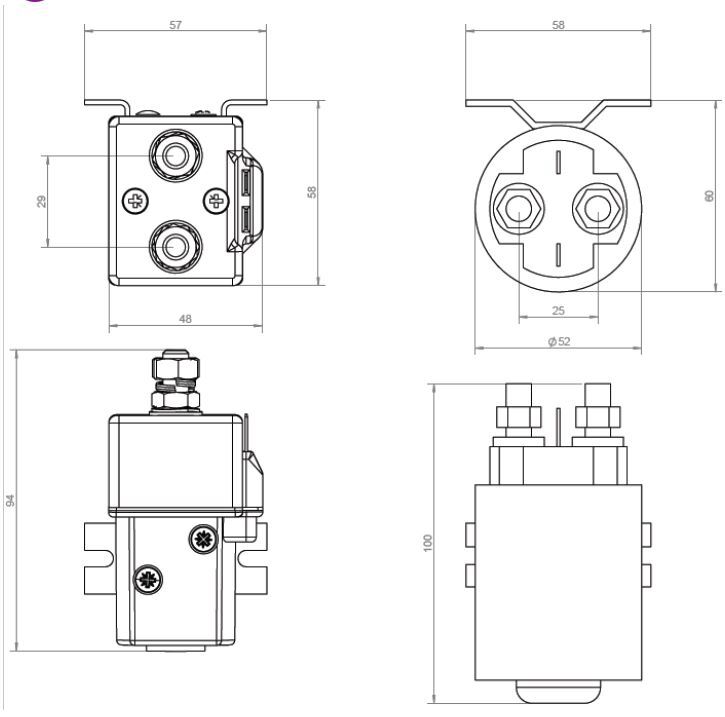

Comparison dimensions are shown in the attached picture - the new rectangular shaped one  can be used for the same aplication as the old round one
.

  • Installation in a dry area is always recommended
  • Refer to the attached Electrical Accessory Selection Brochure (PDF) to check compatibility.

Specifications:

(990482)

SKU 990482
Model # SP1393
Brand Vetus Maxwell
Shipping Weight 0.0200kg
Shipping Width 0.060m
Shipping Height 0.060m
Shipping Length 0.110m
Unit Of Measure Each

Vetus Maxwell 3 Year Warranty*
