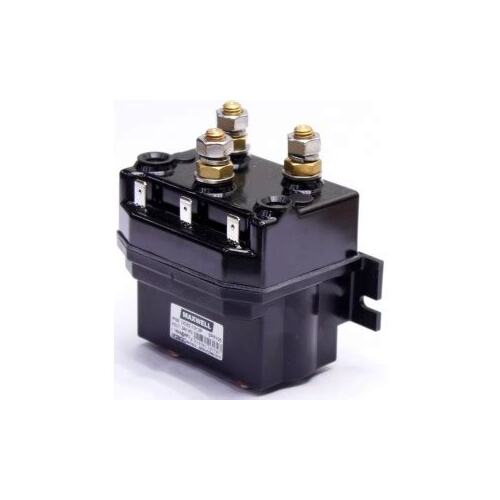

Reversing Solenoid 12V 3 Pole - Suits RC8-8/RC10/RC12/1000 - 3500 series
This  SP5104 - Replaces the old discontinued P19045)

Dual Direction Solenoids are used in conjunction with remote Up/ Down panel, AutoAnchor™ Rode Counters, roving hand held remote controls and/or deck mounted foot switches, to switch the motor in the required direction.
The Maxwell range of solenoids are heavy duty solenoids, suitably rated for Mawell anchor winch motors however, s
olenoids must be matched to the winch model.
Refer to the attached Electrical Accessory Selection Brochure (PDF) to check compatibility.

Features:

  • Ignition protected solenoid
  • Installation in a dry area is always recommended
  • Refer to the above Selection Chart (PDF Brochure) to check compatibility.
  • This SP5104 is a 3 post 12V (series wound style) reversing solenoid.

(990486)

Practical Tips and Advice:

Reversing Solenoid 12V 3 Pole - Suits RC8-8/RC10/RC12/1000 - 3500 series
This  SP5104 - Replaces the old discontinued P19045)

The SP5102 is a 3 post (series wound style) 12V reversing solenoid.

As solenoids are available in 12 or 24 V DC for permanent magnet 2 terminal (PM), series wound 3 terminal (SW) and Field wound 4 terminal (FW) motors, solenoids must be matched to the winch model.
Refer to the above Electrical Accessory Selection Brochure (PDF) to check compatibility.

SKU 990486
Model # SP5104 - ex P19045
Brand Vetus Maxwell
Shipping Weight 1.1000kg
Shipping Width 0.140m
Shipping Height 0.160m
Shipping Length 0.200m
Unit Of Measure Each

Vetus Maxwell 3 Year Warranty*
