AA320 Remote Control - Hand Held Wired  - 2 Button -  P102992

Purpose:

Hand held controller for use with anchor winches, windlasses, davits, thrusters and other marine equipment.

Features:

  • Electrical protection against back-emf
  • Rubber over-moulding for shock protection and grip
  • Stowage cradle
  • Operate in parallel with all AutoAnchor™ products, toggle switches, foot switches or other control equipment
  • Connect to DC, AC and Hydraulic systems
  • Rugged coiled cable and connector and socket - Note whilst the manaufacturer and other retailers say it is 4.5m it is actaully 2.5m plus .95m total of 3.4metres.
  • All products are rated to IP67 including cables, plugs and sockets

Technical Specifications:

  • Maximum Operating Voltage: 30V DC
  • Maximum Output Current: 3A
  • Operating Temperature Range: -5°C to 60°C (23°F to 140°F)
  • Enclosure Dimensions: (HxWxD) 150.46 mm x 64.37 mm x 47.42 mm (5.92” x 2.53” x 1.87”)
  • IP Rating IP67

See What's in the Box Tab above for the complete list of items included.

(990499)

What's in the Box?

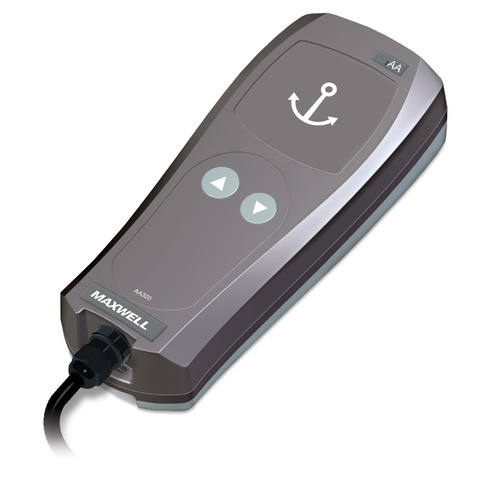

(All items shown in the above picture).

  • Hand held remote control with cable and 3 pin male connector plug - Rugged coiled cable and connector and socket - Note whilst the manaufacturer and other retailers say it is 4.5m it is actaully 2.5m plus .95m total of 3.4metres
  • Weatherproof socket with cap, gasket and short length of wires
  • SS self tapping screws
  • Cradle to hold remote control
  • Instruction Manual.





SKU 990499
Model # P102992
Brand Auto Anchor
Shipping Weight 0.2000kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.100m
Unit Of Measure Each
