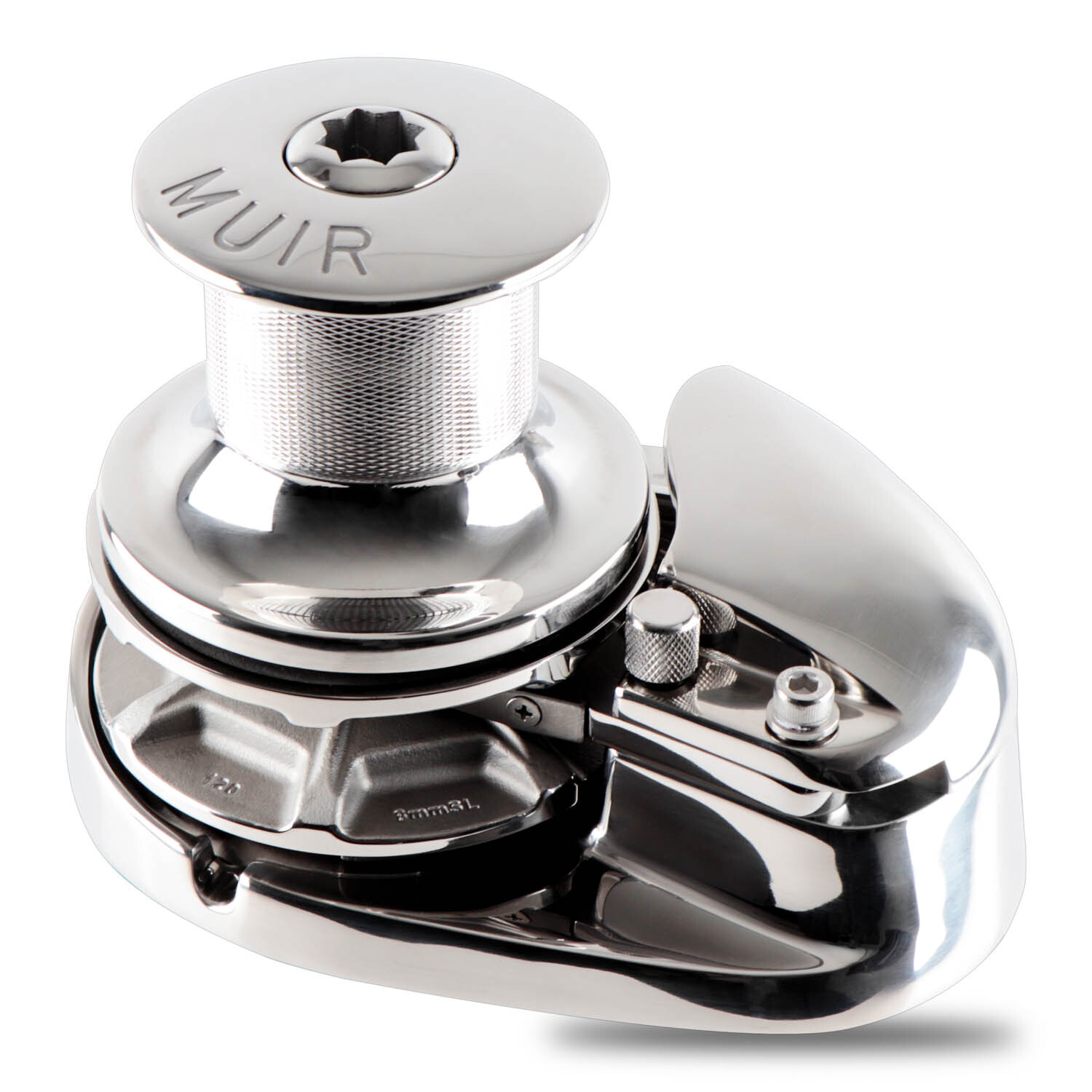

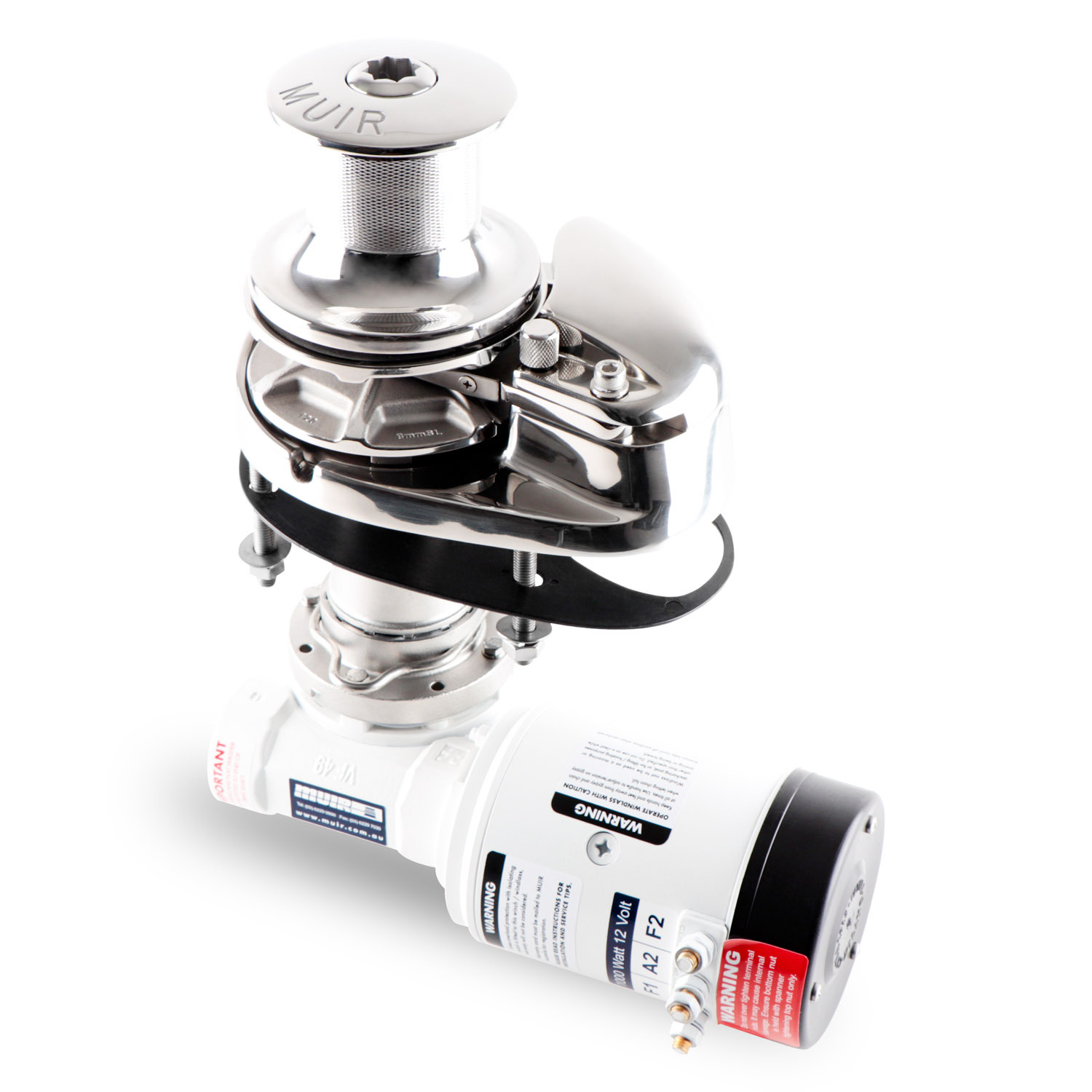

Muir VRC2200 Storm Vertical Winch w Capstan

Muir VRC2200 Storm Vertical Winch with Capstan - 8mm SL - 1500W -12V
Vertical Stainless Steel Anchor Winch with Capstan 1200W
12V - Suits 10mm SL Chain

Suits:

Most boats up to 12-15m (39-49 Ft)
8mm SL Chain only or
12V DC Power Supply

Deck Template PDF is above and may be downloaded.

Specifications:

Power Supply: 12 (DC)
Motor: 1500 (Watts)
Max Load: 1100kg (2425lb)
Work Load: 367kg (809lb)
Amps Work Load: 150A/75A (12/24V)
Max Line Speed: 30m/min (98ft/min)
Chain Size: 8mm SL
Rope Size: XXmm

Features:

• Polished stainless steel components
• Rope chain combination gypsy for rope and chain combination, or chain only
• Rope Chain Management System (RCMS)
• Quick release integrated swivel chain pipe cover
• Gypsy with low profile clutch top arrangement
• Heavy duty marine grade, dual direction motor in 12V and 24V DC, Hydraulic
• Independent gypsy and capstan operation
• Capstan has heavy duty knurled finish for increased grip
• Quick fit adaptor
• Stainless steel shaft
• Cone clutch/brake
• Stainless steel mounting bolts
• Shaft seal
• Self lubricating bush
• Clutch release handle
• Installation/Operation booklet

(993905)

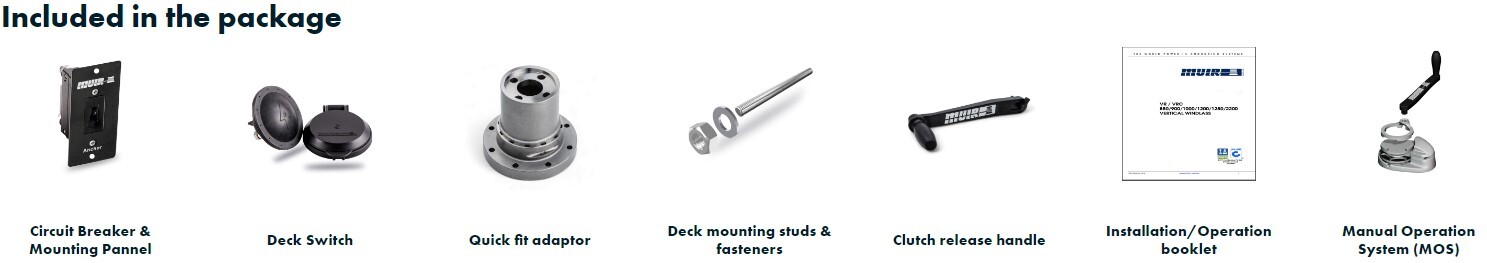

What's In the Box?

Anchor Winch with capstan and gearbox
Rope chain combination gypsy for rope and chain combination or chain only
Circuit breaker
1 x Deck switch
Emergency crank/clutch release handle (included)
Deck bolts/studs and fasteners
Quick fit adapter - for easier installation
Owners Installation manual with
- deck template,
- wiring instructions and
- installation instructions.

You will also need:

A correctly sized, solenoid and a second deck switch - see related products below.

Other Accessories:

Browse the "Anchor Winch Electrical Accessories" category of this website for additional optional accessories such as remote controls and anchor chain counters.
Browse the "Additional Hardware Accessories" for items such as snubbers - (see the left hand menu).

Important: Muir windlasses must be used in conjunction with a chain stopper or alternative snubbing device to take the load off the windlass while laying at anchor. the chain stopper and alternative snubbing system should also be used to secure the anchor in the fully raised position while under way.

Muir anchor winches can easily be shipped to most of Australia - refer to the freight calculator.
We prefer a business address if possible - (someone will need to be present to sign for the delivery).

SKU	993905
Model #	VRC2200
Brand	Muir
Shipping Weight	25.0000kg
Shipping Width	0.600m
Shipping Height	0.580m
Shipping Length	0.580m
Shipping Cubic	0.201840000m3
Unit Of Measure	Kit
