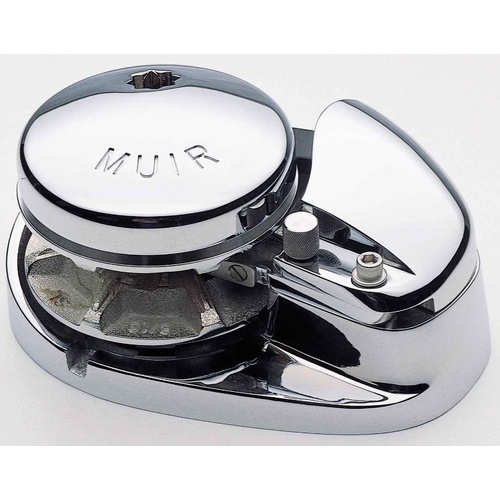

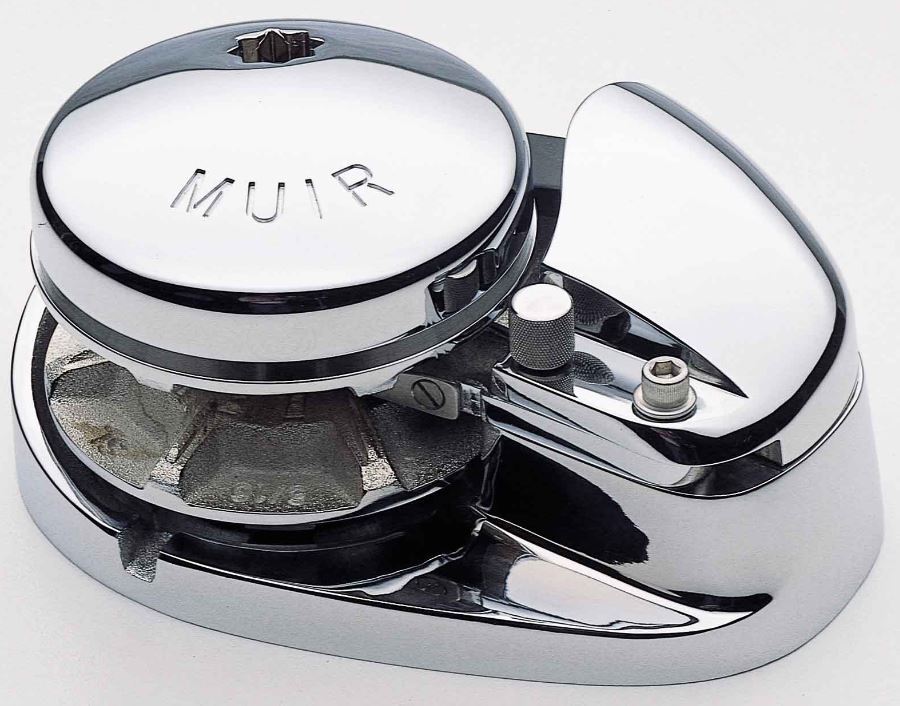

Muir VR1250 Storm Vertical Winch - 8mm -1200W -12V F10124

Muir Storm Vertical Stainless Steel Anchor Winch VR1250 1200W 12V - F101024 - Suits 8mm SL Chain

Suits:

Most boats up to 10 - 13m (32 - 42Ft)
8mm SL Chain only or
8mm SL Chain and 14mm Rope combo.
12V DC Power Supply

Specifications:

Power Supply: 12V (DC)
Motor: 1200 (Watts)
Max Load: 500kg (2200lb)
Work Load: 125kg (550lb)
Amps Work Load: 100A/60
Max Line Speed: 15m/min (48ft/min)
Chain Size: 8mm SL
Rope Size: 14mm

Includes:

Emergency handle (clutch release)
100A Circuit Breaker included (for this 12V winch)
MOS Manual Operating System (8mm winch only)
Cone clutch drive
1 x Muir black deck switch with cover
Deck bolts
Installation/Operation booklet

See our What's in the Box Tab for the full list.

If this is a new installation: You will also need another deck switch and/or a helm control up/down switch and a Muir 12V 3 Pole solenoid.
(See below for part numbers).

Features:

• Polished stainless steel components
• Rope chain combination gypsy for rope and chain combination, or chain only
• Rope Chain Management System (RCMS)
• Quick release integrated swivel chain pipe cover
• Gypsy with low profile clutch top arrangement
• Heavy duty marine grade, dual direction motor in 12V
• Independent gypsy and capstan operation
• Capstan model features heavy duty knurled finish for increased grip
• Quick fit adaptor
• Stainless steel shaft
• Cone clutch drive/brake
• Stainless steel mounting bolts
• Shaft seal
• Self lubricating bush

(991600)

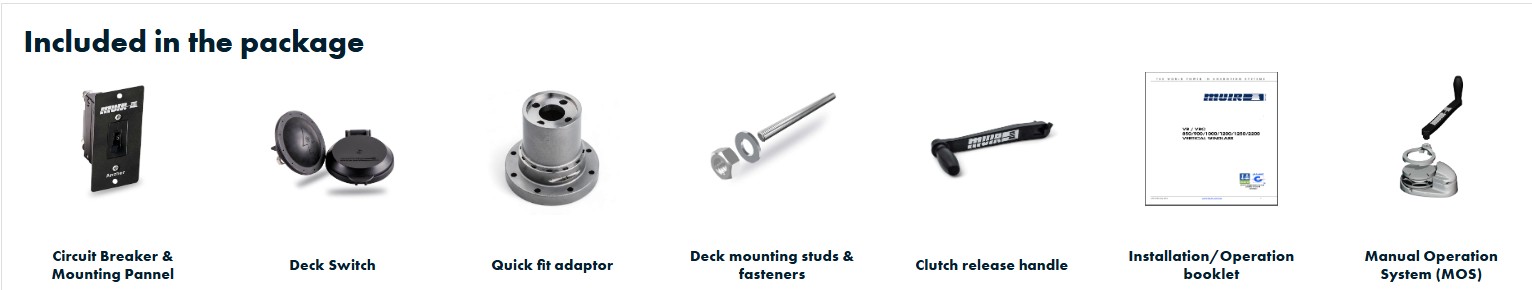

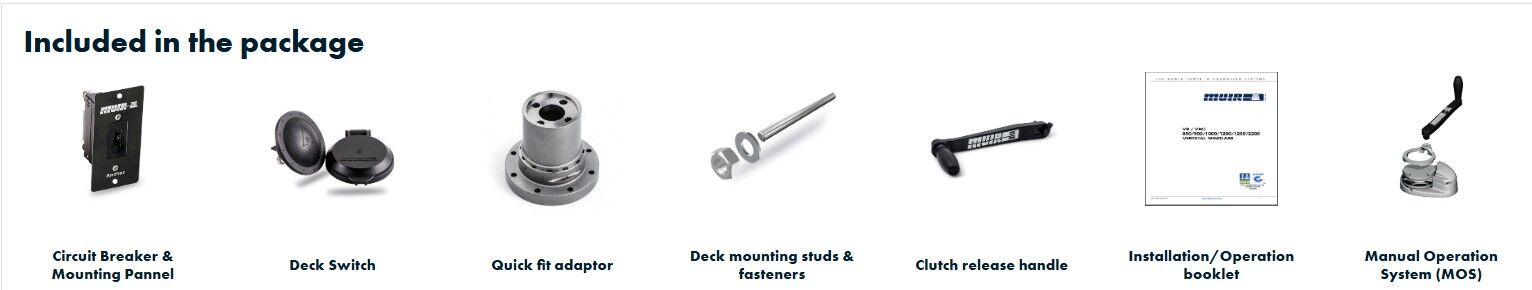

What's In the Box?

Anchor Winch with gearbox
Rope chain combination gypsy for rope and chain combination or chain only
1 x 100A Circuit breaker (suits 12V systems)
1 x Muir black deck switch with cover
Emergency crank/clutch release handle (included)
MOS Manual Operating System (8mm winch only)
Cone clutch drive/brake
Deck bolts
Quick fit adapter - for easier installation
Owners Installation manual with
- deck template,
- wiring instructions and
- installation instructions.

You will also need:

A correctly sized, solenoid and up/down control switch - see related products below.

Other Accessories:

Browse the "Anchor Winch Electrical Accessories" category of this website for additional optional accessories such as remote controls and anchor chain counters.
Browse the "Additional Hardware Accessories" for items such as snubbers - (see the left hand menu).

Important: Muir windlasses must be used in conjunction with a chain stopper or alternative snubbing device to take the load off the windlass while laying at anchor. The chain stopper and alternative snubbing system should also be used to secure the anchor in the fully raised position while under way.

Muir anchor winches can easily be shipped to most of Australia - refer to the freight calculator.
We prefer a business address if possible nbut can deliver to homes too. (someone will need to be present to sign for the delivery).

SKU	991600
Model #	VR1250 - F101024
Brand	Muir
Shipping Weight	20.0000kg
Shipping Width	0.400m
Shipping Height	0.430m
Shipping Length	0.480m
Shipping Cubic	0.082560000m3
Unit Of Measure	Kit
