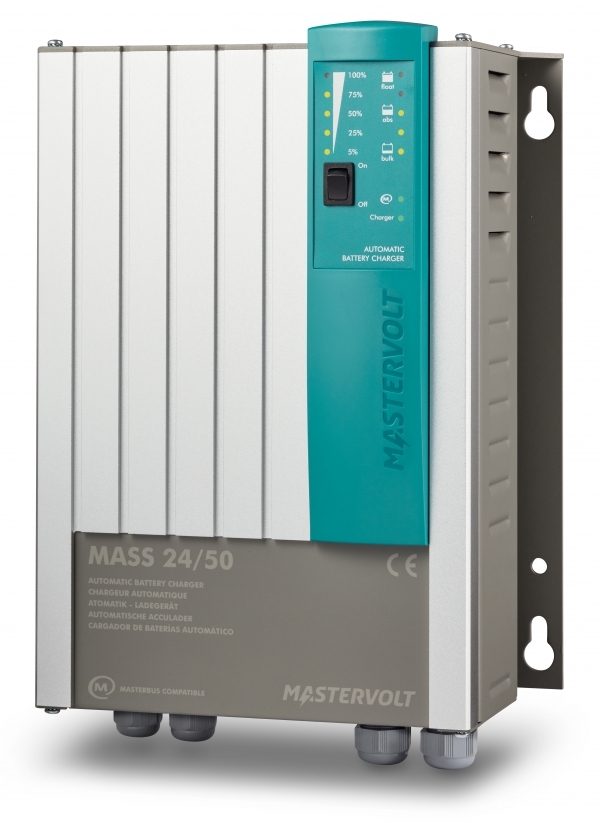

Mastervolt 24V Mass Battery Charger 24/50-2 - 40020506 / 110360

Mastervolt mass battery chargers are designed for the toughest conditions for professional, semi-professional and recreational purposes.
 With an MTBF of 180,000 hours at full capacity and 24/7 use, the Mass products are ideal for the toughest tasks and any situation that requires a reliable power supply.
Compliant with CE, ABYC A-31, DNV GL, RRR, RMRS

Features:

  • Lightweight, compact, stainless steel, anodised aluminium casing.
  • 2 Outlets
  • Coating of internal components prevents damage from damp or condensation to ensure a longer lifespan.
  • Insensitive to electromagnetic effects from other devices.
  • Suitable for every type of battery, also charges flat batteries.
  • Delivered as standard with temperature sensor.
  • Full power at temperatures of up to 40 ˚C.
  • Load capacities from 80 to 1000 Ah or more.
  • Stable and ripple free power supply, even without batteries.
  • The Current Control function prevents the breakdown of fuses when the voltage drops.
  • Parallel switching possible using multiple battery chargers.
  • Connections in accordance with CE, ABYC A-31 and IEC60945.
  • GMDSS models and panels available.
  • Certified by RRR, RMRS (does not apply to 24/75 120 V).
  • Certified by DNV GL (only 24/25, 24/50, 24/75, 24/75 (120 V), 24/100 (1ph) models).

Dimensions:

  • 340 x 261 x 130 mm (13.4 x 10.3 x 5.1 inch)
  • Weighs 6.6Kg

Specifications:

  • Nominal output voltage 24 V
  • Total charge current 50 A at 28.5 V
  • Number of battery outlets 2
  • Charge current second output 3 A
  • Battery bank size 100-500 Ah
  • Nominal input voltage 230 V (180-265 V), 50/60 Hz
  • Power supply mode yes
  • Galvanic isolation yes
  • Display/read-out LED display

(993195)

SKU 993195
Model # EN32430
Brand Mastervolt
Shipping Weight 7.8000kg
Shipping Width 0.390m
Shipping Height 0.270m
Shipping Length 0.450m
Shipping Cubic 0.047385000m3
Unit Of Measure Each
