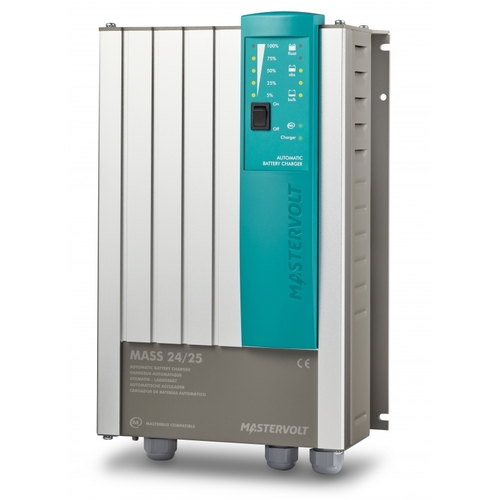

Mastervolt 24V Mass Battery Charger 24/25-2 - 40020256 / 110358

Mastervolt mass battery chargers are designed for the toughest conditions for professional, semi-professional and recreational purposes.
 With an MTBF of 180,000 hours at full capacity and 24/7 use, the Mass products are ideal for the toughest tasks and any situation that requires a reliable power supply.
Compliant with CE, ABYC A-31, RRR, RMRS

Features:

• Lightweight, compact, stainless steel, anodised aluminium casing.
• 2 Outlets
• Coating of internal components prevents damage from damp or condensation to ensure a longer lifespan.
• Insensitive to electromagnetic effects from other devices.
• Suitable for every type of battery, also charges flat batteries.
• Delivered as standard with temperature sensor.
• Full power at temperatures of up to 40 ˚C.
• Load capacities from 80 to 1000 Ah or more.
• Stable and ripple free power supply, even without batteries.
• The Current Control function prevents the breakdown of fuses when the voltage drops.
• Parallel switching possible using multiple battery chargers.
• Connections in accordance with CE, ABYC A-31 and IEC60945.
• GMDSS models and panels available.
• Certified by RRR, RMRS (does not apply to 24/75 120 V).
• Certified by DNV GL (only 24/25, 24/50, 24/75, 24/75 (120 V), 24/100 (1ph) models).

Dimensions:

• 325 x 220 x 111 mm (13.4 x 10.3 x 5.1 inch)
• Weighs 3.3 Kg

Specifications:

• Nominal output voltage 24 V
• Total charge current 25 A at 28.5 V
• Number of battery outlets 2
• Charge current second output 3 A
• Battery bank size 50-250 Ah
• Nominal input voltage 230 V (180-265 V), 50/60 Hz
• Power supply mode yes
• Galvanic isolation yes
• Display/read-out LED display

Remote Control and Monitoring options:
• MasterBus compatible via SmartRemote or EasyView 5 display.
• CZone / NMEA 2000 compatible via Touch 5 or Touch 10 display.
• NMEA 2000 compatible via 3rd party multifunctional display.
