Lewmar Size 60  Flyscreen with ABS Plastic Trim - 170228

Easy and stylish way of finishing a hatch installation inside the cabin and keping insects out.
The internal trim cour is white.

Features:

• Trim kits come complete with an insect screen
• Can only be fitted to boats with a headliner
• Cannot be used on flat base model of Ocean hatches

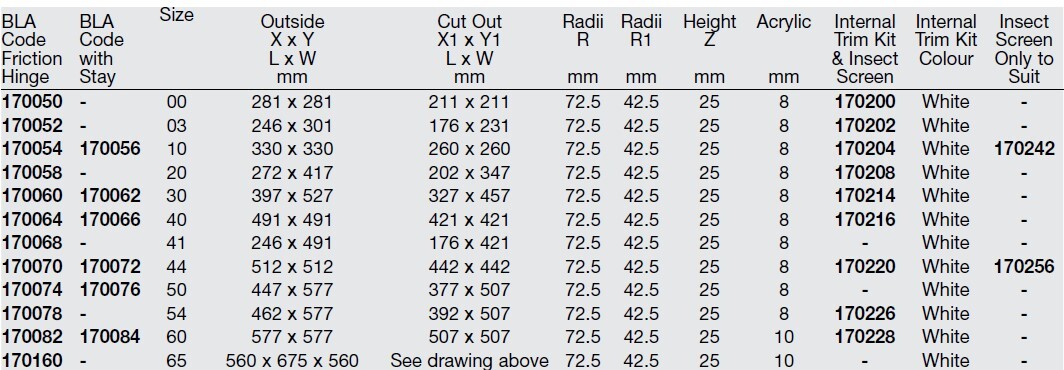

Dimensions: (see the dimension table picture above) however we recommend selecting by the matching hatch size.

Installation Instructions:

For Lewmar Low and Medium Profile Friction Hinge Hatches:

  • Min Hull Thickness = 15mm
  • Max Hull Thickness = 62mm

This size 60 suits low and medium profile hatches only.

Cut out Dimensions Increase: Add 4mm to X1 & Y1 and 2mm to R1

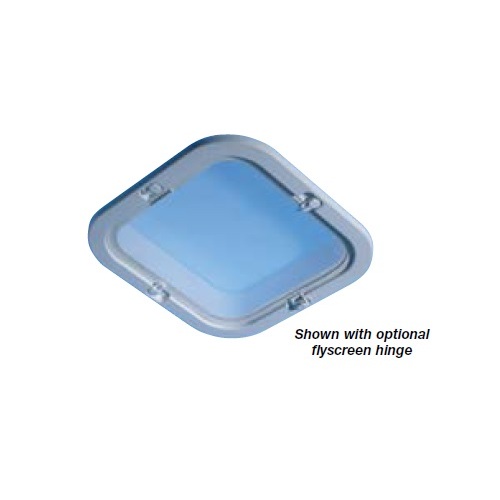

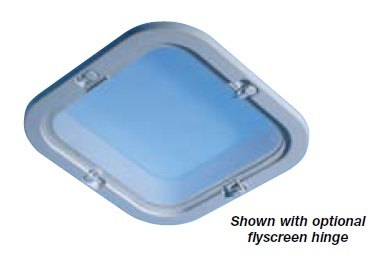

An hinge kit also available as an optional extra (see  below). This makes it easier to access hatch handles .

(993410)

SKU 993410
Barcode # 743683116070
Brand Lewmar
Shipping Weight 5.1000kg
Shipping Width 0.600m
Shipping Height 0.100m
Shipping Length 0.650m
Shipping Cubic 0.039000000m3
Unit Of Measure Kit
