Lewmar Size 20  Flyscreen with ABS Plastic Trim - 170208

Easy and stylish way of finishing a hatch installation inside the cabin and keping insects out.
The internal trim cour is white.

Features:

• Trim kits come complete with an insect screen
• Can only be fitted to boats with a headliner
• Cannot be used on flat base model of Ocean hatches

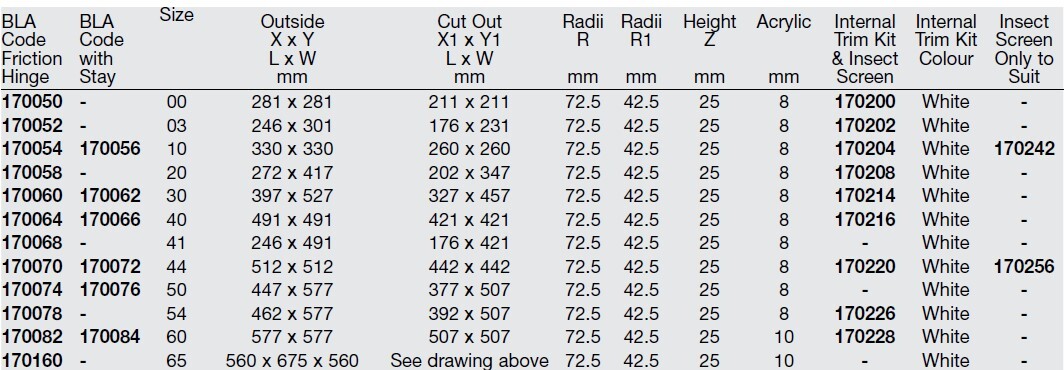

Dimensions: (see the dimension table picture above) however we recommend selecting by the matching hatch size.

Installation Instructions:

For Lewmar Low and Medium Profile Friction Hinge Hatches:

• Min Hull Thickness = 15mm
• Max Hull Thickness = 62mm

For Lewmar Ocean Friction Hinge Hatches (excluding the flat base models):

• Min Hull Thickness = 25mm
• Max Hull Thickness = 72mm

Cut out Dimensions Increase: Add 4mm to X1 & Y1 and 2mm to R1

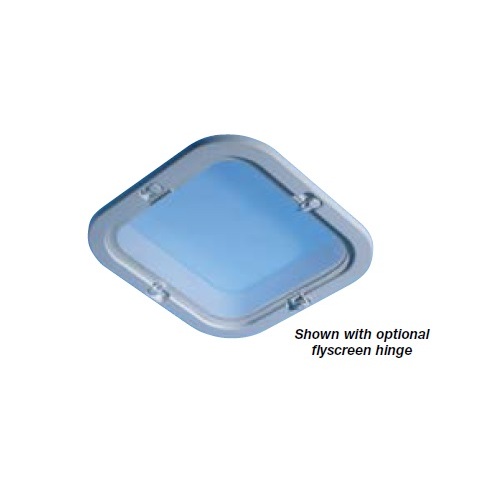

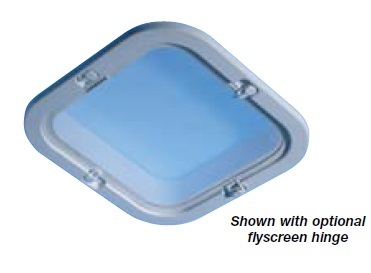

An hinge kit also available as an optional extra (see  below). This makes it easier to access hatch handles .
