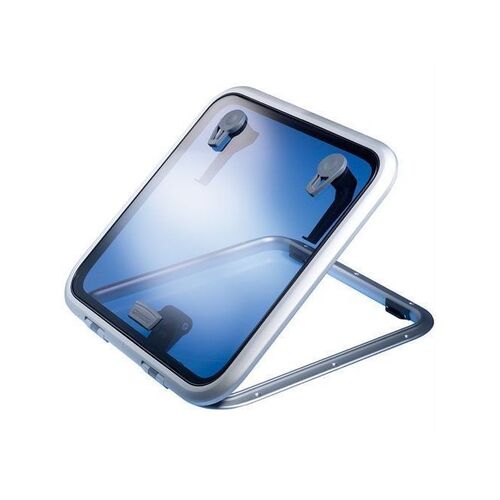

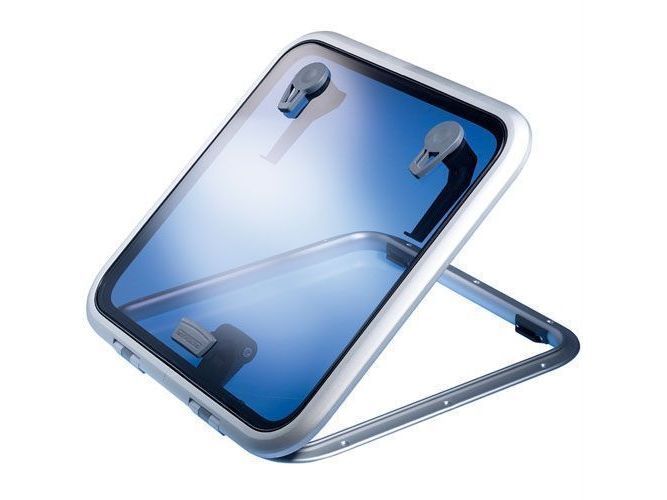

Lewmar Hatch Low Profile - Size 41 Silver - 170068
Friction Hinge Style

Cut Out Size : 176mm x 421mm
Overall Outside: 246mm x 491mm

Ideal as a foredeck hatch on larger cruisers and offshore yachts.
Manufactured to exacting standards, the Lewmar® Low Profile range provides a smooth profile with modern lines.
The Lewmar® range features industry leading construction and are manufactured from silver anodised extruded aluminium fitted with quality acrylic lenses ranging in thickness from 8mm to 12mm.
Lewmar® Hatch - Low Profile The Low Profile hatch range features a snag free soft styling which presents a sleek modern look.
The low profile hatch range is ideal for use on a wide range of power craft and yachts.

Ideal as a foredeck hatch on small to mid size power and sailboats.

Features:

  • Outside handles
  • Low profile hatches open up to 180 Degrees
  • Ability to lock the hatch fully closed or in the vented position
  • Ability to quickly and easily replace acrylic lens -
  • Friction levers hold the lid open in any position up to 95°
  • Anodised aluminium frame for corrosion resistance
  • Curved upper frame for strength as well as modern styling -
  • Lewmar's unique sealing system allowing easy acrylic replacement
  • CE approved to Area 2A

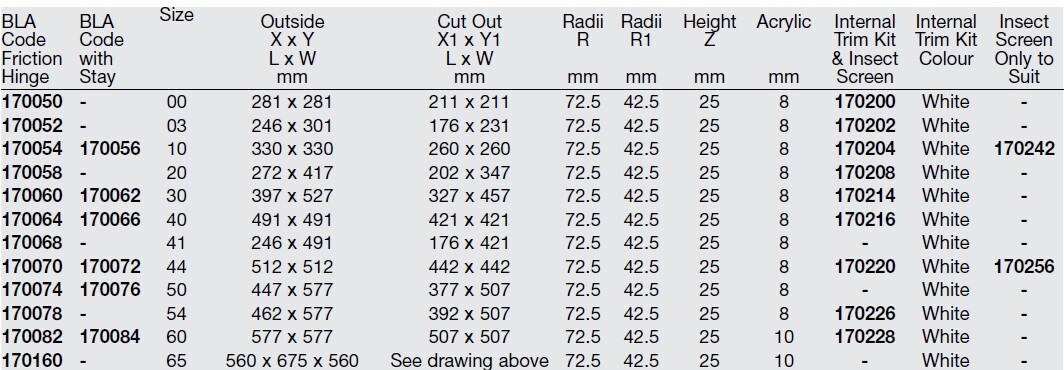

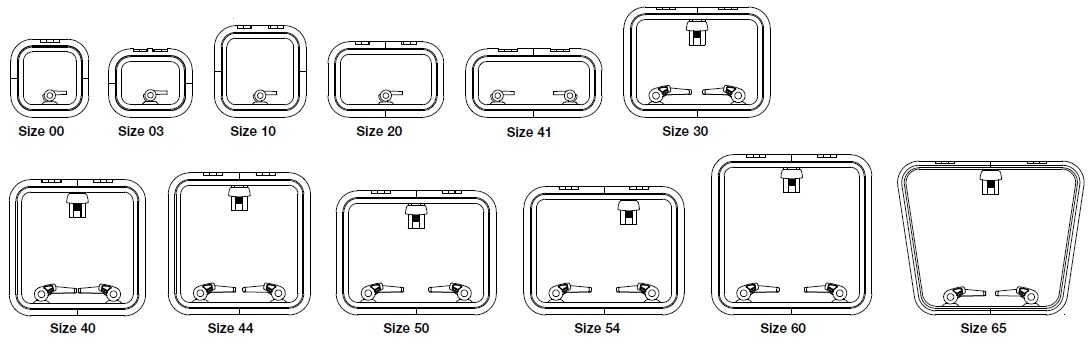

Dimensions: (use with the dimensional drawing pictures above)

  • Overall Outside Size: 246mm x 491mm
  • Cut Out Size : 176mm x 421mm
  • Height: 25mm
  • Radius R: 72.5mm
  • Radius R1: 42.5m
  • Acrylic Thicknes: 8mm

Mounting Instructions:
Fit to a flat surface with a maximum tolerance of +/- 1mm.
Fastening size at hinge section use (M6 / 1/4").
Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.
Surface must not flex if it does make a frame.

(993376)

SKU 993376
Barcode # 743683107146
Brand Lewmar
Shipping Weight 5.2000kg
Shipping Width 0.300m
Shipping Height 0.100m
Shipping Length 0.550m
Shipping Cubic 0.016500000m3
Unit Of Measure Each
