Isotherm ITC DIY Fridge Freezer Kit 200/65L SS Eutectic Tank Air Cooled 381540
200L Fridge or 65L Freezer

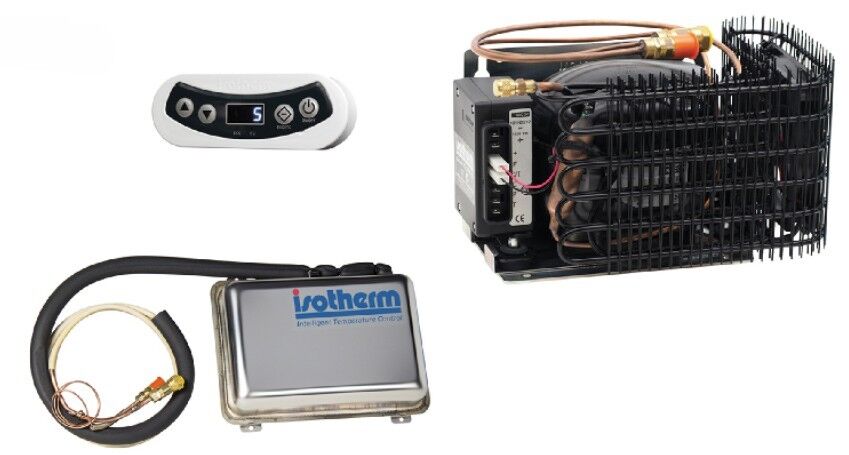

DIY Fridge/Freezer Kit 200/65L with SS Eutectic Tank - Air Cooled - 381540 / U200X065A17161AA
Suits 200L Fridge Box or 65L Freezer Box
This 12-24 volt fridge freezer kit comes with a stainless steel eutectic holding tank which gives much colder refrigeration using less battery power.
This air-cooled refrigeration unit is suitable for mounting in new or existing cool boxes.
The stainless steel holding plate tank, with an average holding temperature of -9ºC, can be mounted at any angle high up in the cool box for convenience.
Suits:
The ITC retro fits with compatible DC and AC/DC Isotherm fridge and freezers equipped with the current
generation SeCOP control modules (101N0212 & 101N510) which are standard on Isotherm Fridges.
Features:
- Stainless steel Eutectic Holding Tank
- Air-cooled compressor for effective cooling and easy installation
- ITC (Intelligent Temperature Control) Display for excellent control of the fridge/freezer
- ITC and ECO system Logic for great power saving efficiencies
- Volume* Fridge/Freezer: 200L / 65L
- Compressor Type: BD50F
- Allows the fridge or freezer to be turned on/off without opening,
- It displays faults and 3 battery protection levels for additional user control.
- It also allows manual activation of either the ECO and ITC functions for a user control.
Dimensions:
- Compressor Dimensions: H x W x L: 155mm x 160mm x 315mm
- Holding Tank Dimensions: H x W x L: 320mm (H) x 400 (W) x 90 (Deep)
- Weight: 18.8kg
Optional Extra Item: Add the AC/DC module (shown below) and run kit from 240V.
Practical Notes:
- Running engine for ½ to 1½ hours daily reduces current consumption by 50-90%.
- Reduce recommended box volume by 10-20% for tropical conditions.
- It is important that the compressor compartment is well ventilated aiding the compressor to blow cool air through the condenser.
(993995)
SKU | 993995 |
Barcode # | 8056039157040 |
Brand | Isotherm |
Shipping Weight | 19.0000kg |
Shipping Width | 0.400m |
Shipping Height | 0.350m |
Shipping Length | 0.450m |
Shipping Cubic | 0.063000000m3 |
Unit Of Measure | Kit |
