Hydrive Tiller Arm Offset Bracket - Honda Yamaha 25mm Offset - TA-6176A

Suits Hydrive Bullhorn Series 3 Steering Cylinders

A single bracket link is already included in the Hydrive outboard steering kits - however occassionally you may need to change the bracket - for example if you upgraded your outboard to a different model.

Dimensions:

• 25mmm offset
• All three brackets are the same length and have the same hole measurements - it is only the offset that varies.
• 148mm to the centre of the first hole
• 168mm to the centre of the second hole

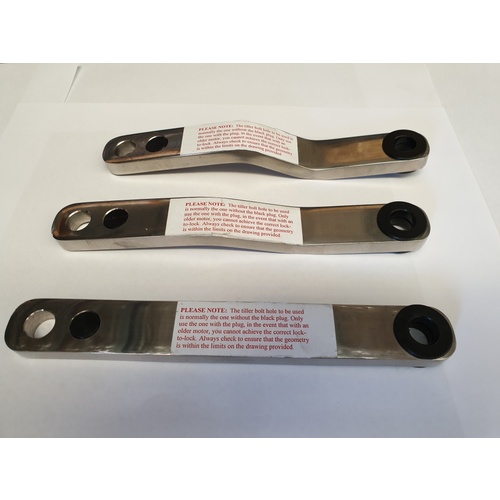

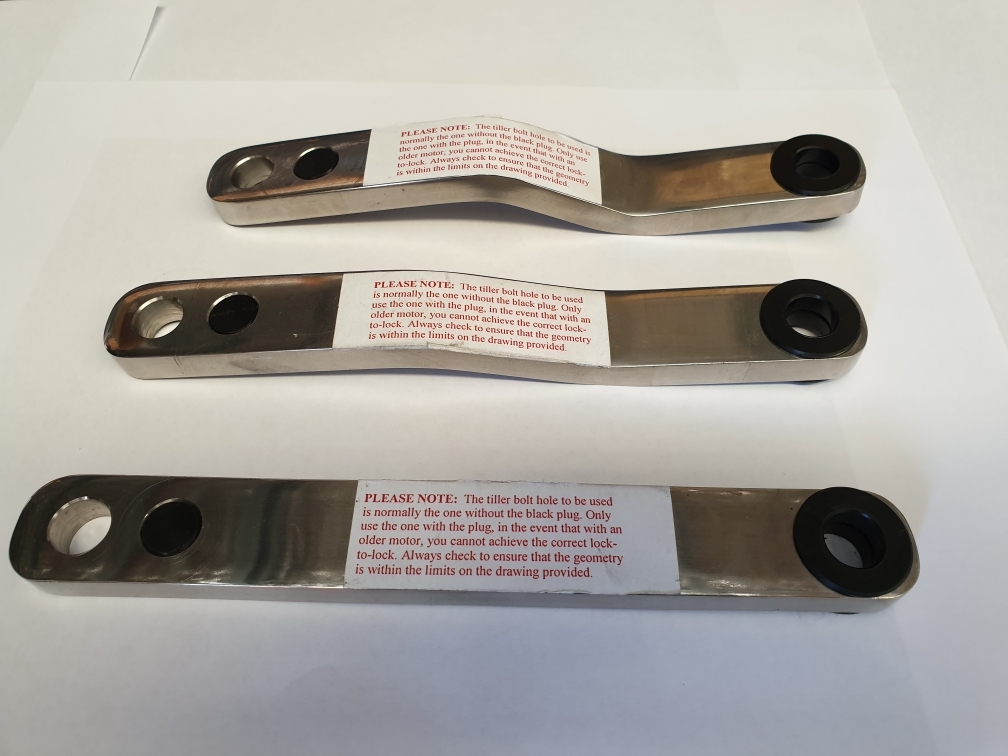

As the picture shows there are three versions of this bracket - they provide different heights (called offsets)  when joinng the steering cylinder to the outboard.

Be careful however as, for example  just because you have a Mercury engine it may not take a Mercury bracket - use the selection chart. (see PDF to download).

If you are changing your engine consult the engine compatibility/selection PDF chart to find the correct bracket for your new outboard.
