Hydrive Admiral Hydraulic Outboard Steering Kit OBKIT-5 with 402 Helm Pump Upgrade

402 Helm pump upgraded kit.
Hydrive Admiral Hydraulic Outboard Steering Kit OBKIT-5
Front mount, high quality bronze, brass and stainless cylinder.
The 216FM is designed for installation directly onto most V4 and V6 outboards and mounts to the
front of the motor using 4 small bolts. It attaches to the outboard motor’s tiller arm using the
motor’s existing drag-link.
The cylinder requires more room than the bullhorn style cylinder, however the hoses remain
stationary making it an ideal choice for wider engine wells.

Installation is simple and performance is impressive when compared with conventional cable steering.

This Hydrive Admiral Hydraulic Outboard Steering Kit OBKIT-5 includes:

  • Model 402 Helm
  • Model 216FM cylinder - *Cylinder construction Bronze, Brass and Stainless steel
  • 2 litres ULTRA-15 fluid
  • 15Mtrs 3/8” OD Nylon tubing
  • Bleeding Kit
  • All fittings
  • Installation Manual

High Quality Front Mount Robust 216FM cyclinder:
Capacity:- 137cc Stroke:- 203mm Weight:- 5Kg

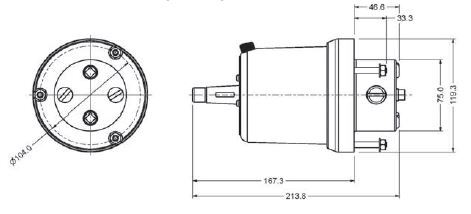

Quality 402 Helm:
Model 402 Capacity:-35cc/rev
In-built Lock valve Maximum working pressure:- 1000psi Absolute maximum pressure:- 1500psi

(992191)

This Hydrive Admiral Hydraulic Outboard Steering Kit OBKIT-5 with the 402 Helm Pump Upgrade includes:

  • Model 402 Helm
  • Model 216FM cylinder
  • 2 litres ULTRA-15 fluid
  • 15Mtrs 3/8” OD Nylon tubing
  • Bleeding Kit
  • All fittings
  • Installation Manual

We can ship this product almost anywhere in Australia! Usually ships the same day.

SKU 992191
Model # OBKIT5
Brand Hydrive
Shipping Weight 12.0000kg
Shipping Width 0.200m
Shipping Height 0.300m
Shipping Length 0.680m
Unit Of Measure Kit

A 2 Year Warranty is offered from Hydrive (Hydrive Engineering P/L is a very reputable Australian company).
