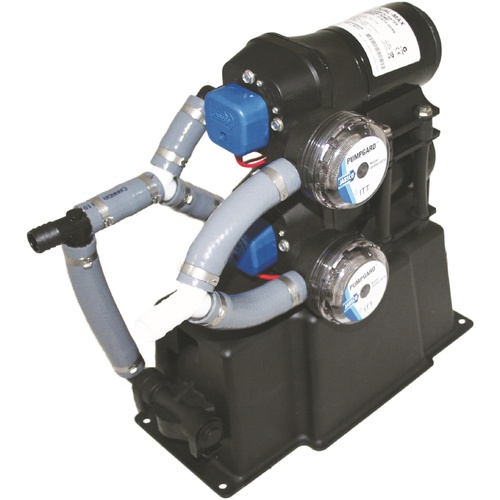

Jabsco Freshwater Dual-Max 24V Pressure Pump Kit - J20-129 - Jabsco 31670-0092
24V Pressure Pump with Accumulator Tank Fitted
Suits up to 6 x 20mm (3/4") Outlets - 28.4 Litres per Minute

Fully assembled kit, wired and plumbed ready for use - easy installation.
2 x Par-Max 4 automatic fresh water pressure pumps provides up to 28.4 litres (7.5 gals) per minute) flow.
Simple one-step electrical connection and snap in ports for 20mm hose.

Includes:

  • 2 x Par-Max 4 40PSI diaphragm pressure pumps with moulded bases
  • Filter and 1 litre pressurized bladder accumulator tank,
  • Integrated accumulator tank,
  • Filters, hoses and all plumbing connections fully fitted ready to go in 1 complete unit.

Features:

  • Up to 28 litres per minute flow - serves up to 6 outlets
  • Cut-in Pressure 20 PSI : Cut-out 40 PSI
  • Versatile 2 stage dual pump system lowers amp draw
  • Ignition protected and thermal overload protection
  • Heavy duty moulded plastic base housing
  • Incorporates accumulator tank to reduce pump cycling
  • Includes filters, hoses and 20mm (3/4”) connections
  • Fully electrically wired including waterproof fuse holders
  • Self primes to 1.5 metres (5 feet)


Max Current Draw: 7.5 Amps

Dimensions: TBA

(993229)

SKU 993229
Model # 59451-1012
Brand Jabsco
Shipping Weight 1.5000kg
Shipping Width 0.180m
Shipping Height 0.180m
Shipping Length 0.300m
Unit Of Measure Each

3 Year Warranty.
