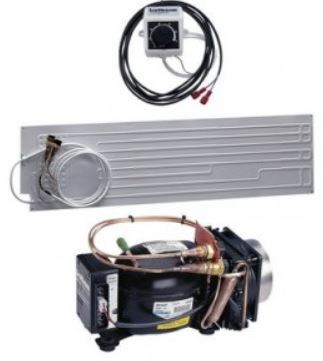

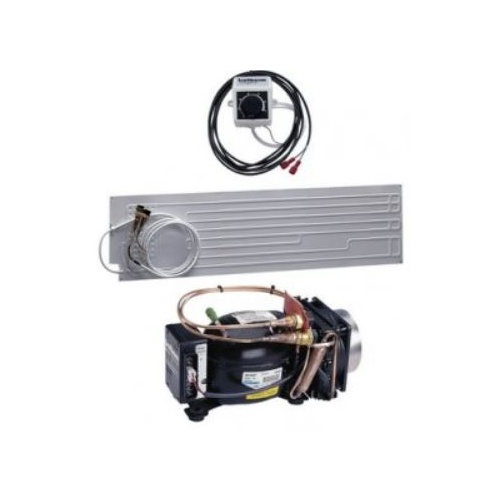

Isotherm DIY Fridge/Freezer Kit 260/85L Flat Air Cooled 381514 / U260x086P12111AA
Compact Classic 2017 Evaporator

12-24 volt fan cooled refrigeration kits suitable for mounting in new or existing ice boxes.
The fan cooled compressor can be mounted up to two metres away from the evaporator box or plate.
Units are supplied pre-gassed with re-openable quick-fit connectors for ease of installation.

Low voltage cut off and radio interference suppression are fitted as standard.
Temperature is adjusted by a rotary thermostat incorporating an on/off switch.
 Utilises R134A ozone friendly refrigeration gas.

* Freezer volume is calculated at approximately one third of the refrigerator volume capability.
Freezer thermostat required if used as freezer. ** Indicates average power consumption at +6°C in refrigeration space using a typical cooler box with standard insulation at an ambient temperature of +22°C.

Volume* Fridge/Freezer: 260L / 85L
Evaporator Type: Flat (TP2017)
Compressor Type: BD50F
Av. Power** Consumption A/hr@12V: 1.1 Max. Power Consumption amps@12V: 6

Dimensions:
Compressor Dimensions H x W x L: 155mm x 160mm x 315mm
Evaporator Dimensions H x W x L: 270mm x 1000mm
Weight: 12kg

(991292)

SKU 991292
Barcode # 9319786113325
Brand Isotherm
Shipping Weight 15.0000kg
Shipping Width 0.400m
Shipping Height 0.350m
Shipping Length 0.450m
Shipping Cubic 0.063000000m3
Unit Of Measure Kit
