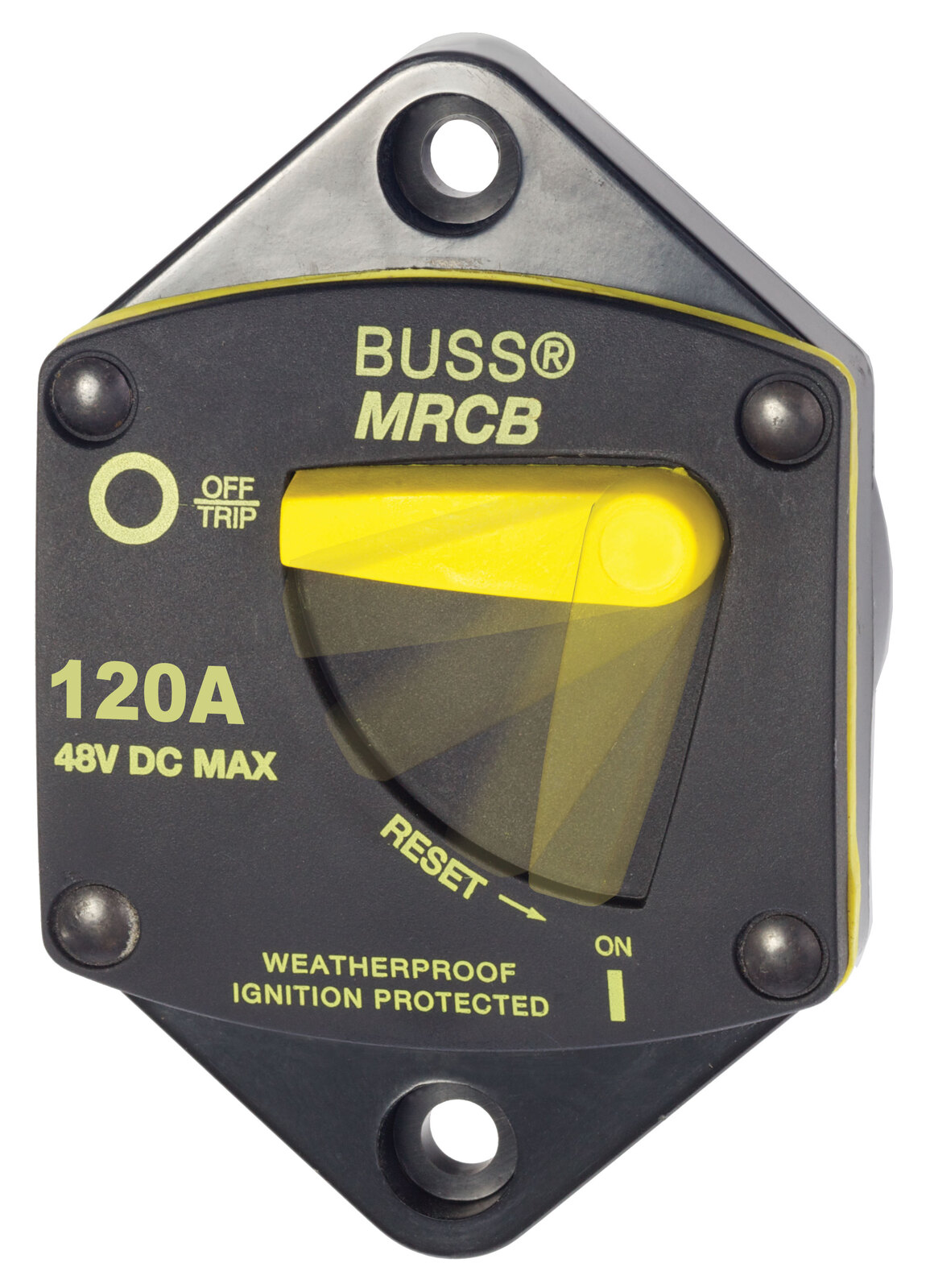

Marine Rated 187 Series Circuit Breaker - Panel Mount 120A - BS-7046

(Bussman / Blue Seas brand)

Good quality, thermal circuit breaker ideal for DC power systems in marine applications, trucks, buses & RV's.

  • Marine Rated.
  • Manual Reset & Switchable
  • Large clearance around terminal studs accepts up to 1/0 AWG lugs
  • Trip-free—cannot be held closed after trip
  • Self-trimming case eliminates need for mounting panels or trim bezels
  • Panel Mount.
  • Rated as IP66 - Weatherproof.
  • Stainless hardware & studs.
  • Single lever for manual reset switching operations.
  • Capable of withstanding 3000 on/off cycles at 48VDC.
  • Ignition Protected and weatherproof.
  • Corrosion resistive materials.
  • Large clearance around studs to accept large gauge wire lugs.

* Do not use as a switch where high inrush currents are expected.

(993184)







SKU 993184
Model # CB187F-70
Brand Bussman
Artist / Author Ruth Cunningham
Shipping Weight 0.2500kg
Shipping Width 0.070m
Shipping Height 0.070m
Shipping Length 0.100m
Unit Of Measure Each
