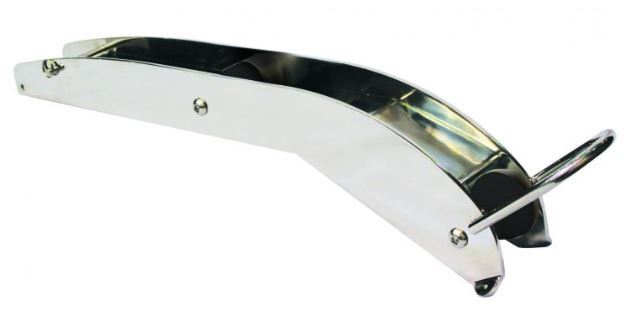

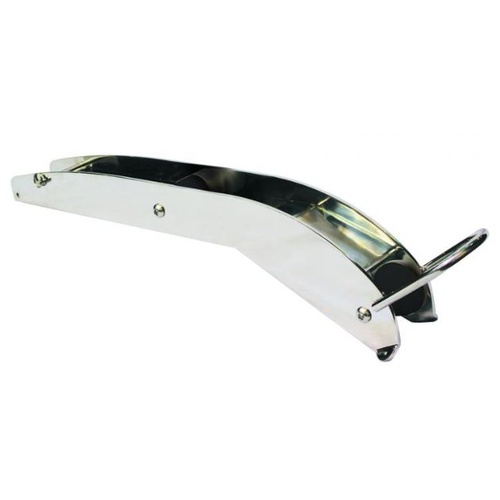

Bow Roller 414mm Polished SS for MAXSET 10kg Anchors P105077

The MAXSET Bow Roller design guarantees that MAXSET stainless steel and galvanised anchors, along with similar competitor versions, are efficiently self-launched during anchor deployment. When the anchor is fully retrieved, the MAXSET bow roller ensures that the anchor fits securely into the roller and will not rattle around when the boat is under way.

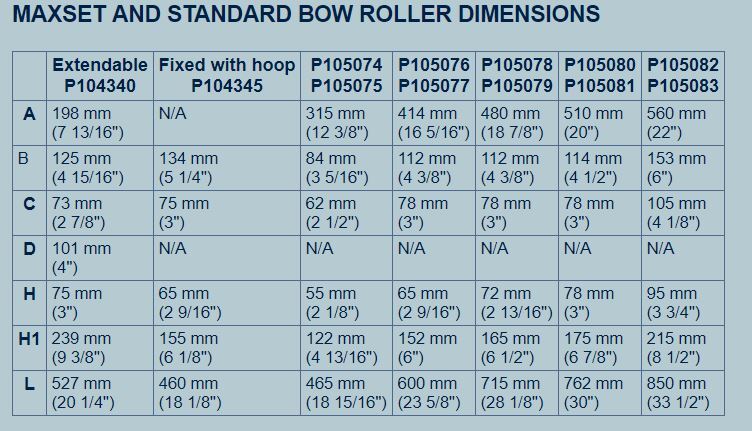

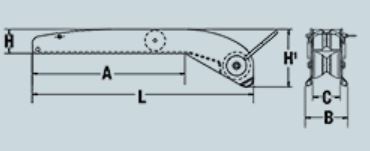

MAXSET AND STANDARD BOW ROLLER DIMENSIONS



Extendable
P104340

Fixed with hoop
P104345

P105074
P105075

P105076
P105077

P105078
P105079

P105080
P105081

P105082
P105083

A

 198 mm
(7 13/16")		 N/A 315 mm
(12 3/8")		 414 mm
(16 5/16")		 480 mm
(18 7/8")		 510 mm
(20")		 560 mm
(22")
B 125 mm
(4 15/16")		 134 mm
(5 1/4")		 84 mm
(3 5/16")		 112 mm
(4 3/8")		 112 mm
(4 3/8")		 114 mm
(4 1/2")		 153 mm
(6")

C

 73 mm
(2 7/8")		 75 mm
(3")		 62 mm
(2 1/2")		 78 mm
(3")		 78 mm
(3")		 78 mm
(3")		 105 mm
(4 1/8")

D

 101 mm
(4")		 N/A N/A N/A N/A N/A N/A

H

 75 mm
(3")		 65 mm
(2 9/16")		 55 mm
(2 1/8")		 65 mm
(2 9/16")		 72 mm
(2 13/16")		 78 mm
(3")		 95 mm
(3 3/4")

H1

 239 mm
(9 3/8")		 155 mm
(6 1/8")		 122 mm
(4 13/16")		 152 mm
(6")		 165 mm
(6 1/2")		 175 mm
(6 7/8")		 215 mm
(8 1/2")

L

 527 mm
(20 1/4")		 460 mm
(18 1/8")		 465 mm
(18 15/16")		 600 mm
(23 5/8")		 715 mm
(28 1/8")		 762 mm
(30")		 850 mm
(33 1/2")

(990561)

SKU 990561
Model # P105077
Brand Vetus Maxwell
Shipping Weight 4.9000kg
Shipping Width 0.200m
Shipping Height 0.420m
Shipping Length 0.620m
Unit Of Measure Each

Vetus Maxwell 3 Year Warranty*
