Bennett Bolt Trim Tab Plane Kit 12" x 9" - BOLT129ADJ - Trim Tab Plane Kit (Pair) with Adjustable Upper Hinge

BOLT 12V electric trim tab kits suit most trailer boats - you will need a BOLT trim tab plane Kit and a BOLT control kit.

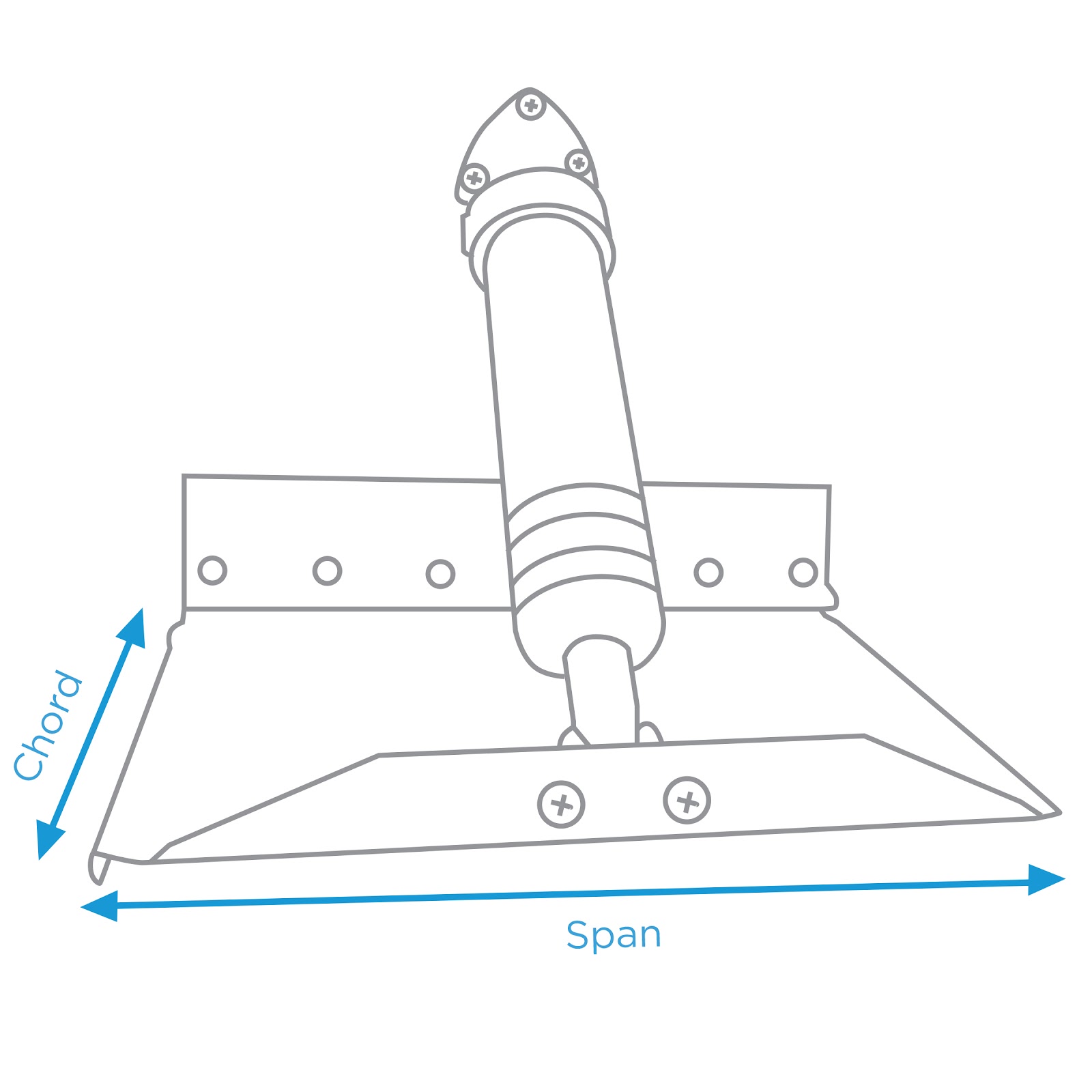

Trim Tab Plane Size: 12" Wide (Span) x 9" for and aft (Chord).
Suits: Most trailer boats up to 7.5 metres.

Benefits:

  • Reduce bow rise, get the boat up on plane faster, correct listing, and increase performance with Bennett’s BOLT Electric trim tab systems.
  • BOLT systems feature an innovative actuator seal design built to outlast any electric trim tab system on the market.

Note: The actuators attach to the aft edge of the trim plane and  the upper actuator hinges are adjustable.

A Control Kit is also needed -  as there are four control kit choices,  the control kit is sold separately - see below.

(990434)

What's in the Box?

  • 2 x 12-Volt actuators with adjustable upper hinges (BEA3000)
  • 1 x 6-ft. wire harnesses and waterproof connectors (for actuators)
  • 2 x  Stainless steel trim planes (tabs) and mounting plates (with interlocking hinge)
  • 2 x 20-ft. actuator extension wire harnesses with waterproof connectors

Advice Tip:

Note: On this kit the actuators attach to the aft edge of the trim plane and  the upper actuator hinges are adjustable.

SKU 990434
Model # 499/BOLT129
Brand Bennett
Shipping Weight 6.0000kg
Shipping Width 0.300m
Shipping Height 0.400m
Shipping Length 0.500m
Unit Of Measure Pair

Bennett also offers a Warranty - BOLT actuators are limited life time. BOLT Controls are 12 months.
